Specifications :-
Model	100R BFT	100E BFT	150R BFT*	150E BFT	200R BFT*	200E BFT
Max. Flow Rate	3000 LPH	3500 LPH	3000 LPH	3500 LPH	3000 LPH	3500 LPH
OBSA (Basis on 200 ppm)	75000 Ltr	75000 Ltr	156250 Ltr	156250 Ltr	131250 Ltr	131250 Ltr
OBR (Basis on 200 ppm)	18750 Ltr	18750 Ltr	31250 Ltr	31250 Ltr	43750 Ltr	43750 Ltr
Resin Tank Volume	103 Ltr	103 Ltr	145 Ltr	145 Ltr	185 Ltr	185 Ltr
Resin Quantity	75 Ltr	75 Ltr	125 Ltr	125 Ltr	175 Ltr	175 Ltr
Salt Tank Volume	100 Ltr	100 Ltr	200 Ltr	200 Ltr	200 Ltr	200 Ltr
Salt Required / Regeneration	12 kg	12 kg	19 kg	19 kg	27 kg	27 kg
Salt Qty.(OBSA) / No’s of Regeneration	45 kg / 4	45 kg / 4	94 kg / 5	94 kg / 5	79 kg / 3	79 kg / 3
Working Pressure	0.15 – 0.6 MPA	0.15 – 0.6 MPA	0.15 – 0.6 MPA	0.15 – 0.6 MPA	0.15 – 0.6 MPA	0.15 – 0.6 MPA
Inlet-Outlet Size	1″	1″	1″	1″	1″	1″
Dimensions in mm	L830 X W480 X H1760	L830 X W480 X H1760	L940 X W580 X H2030	L940 X W580 X H2030	L1040 X W580 X H2030	L1040 X W580 X H2030



Unique Features:	100R BFT 150R BFT 200R BFT	100E BFT 150E BFT 200E BFT
Fully automatic microprocessor-controlling operation	√	√
Display – current time, remaining soft water & current flow	√	√
Brine tank with Brine valve, Brine well and perforated disk	√	√

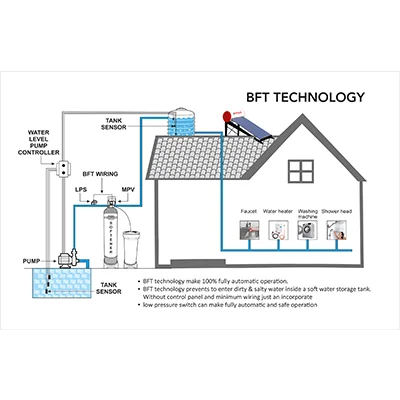

BFT Technology helps to make fully automated operation with pump, water level controller and Softener	√	√
Incorporated with pressure relief SV and sampling valve	√	√
R Series MPV with Big Display	√
E (Q) Series MPV with Small Display		√
Can be use before and after soft water storage tank	√	√
Can be use for individual Bungalow	√	√

  *ORG WATER SOFTENER 150R & 200R available in 1.5″ Inlet-Outlet size. **Without Stand without bypass valve
